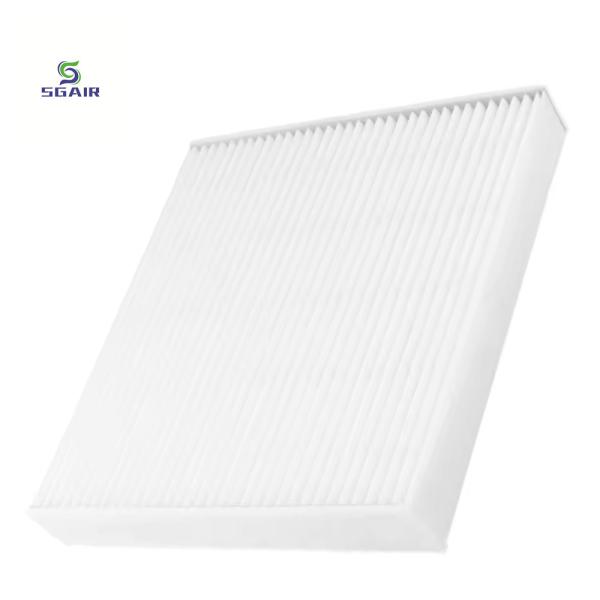

Ultra-High Filtration Efficiency Activated Carbon Air Filter Easy Installation And Maintenance

Description:

The High Capacity Activated Carbon Filters removal of gases, vapors and odors in make-up and recirculated air in cleanrooms and other applications is taking on new significance to provide the required level of air quality for products, processes and people. K-Odor filters offer the latest technology in AMC control not only in low level concentrations, but also for intermittent spikes of higher concentrations up to 5ppm.
Process deisgner, facilities engineers and quality control managers in critical manufacturing industries, such as microelectronics, cleanrooms and pharmaceuticals are becoming increasingly sensitive to the need for chemical filtration to remove low level concentrations of gases, refereed to as Airborne Molecular Contamination.

Advantage

1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling

Application

1. Home environment
Home is the main place for our daily life. HEPA filters can effectively remove dust, pollen, pet hair, etc. in the home, improve indoor air quality, and are very helpful to residents' health.
2. Medical places
Hospitals, clinics and other medical places have high requirements for air cleanliness. HEPA filters can filter harmful substances such as bacteria and viruses to ensure the health and safety of patients and medical staff.
3. Clean workshops
For clean workshops in the pharmaceutical, semiconductor, aerospace and other industries, HEPA filters can effectively remove various tiny particles and maintain an ultra-clean air environment.

There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose

Specifications:

Nominal Size: 24" x 24" x 12"

Nominal Size: 20" x 24" x 12"
Nominal Size: 12" x 24" x 12"
Actual Size(WxHxD): 595x595x292mm
Actual Size(WxHxD): 595x287x292mm
Actual Size(WxHxD): 287x595x292mm

Description:

• Media: Sandwich PP PET + Activated Carbon
• Separator:Hot-melt beads
• Frame: GI;Plastic
• Efficiency: MERV 13
• Initial resistance: 110 Pa
• Recommended final pressure drop : 400Pa
• Humidity resistance: 100%
• Max Temperature: 80 ℃
• Sealant: Polyurethane rubber PU
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Gasket: one piece half round continuous gasket
• Available in Box or Single flange type.
