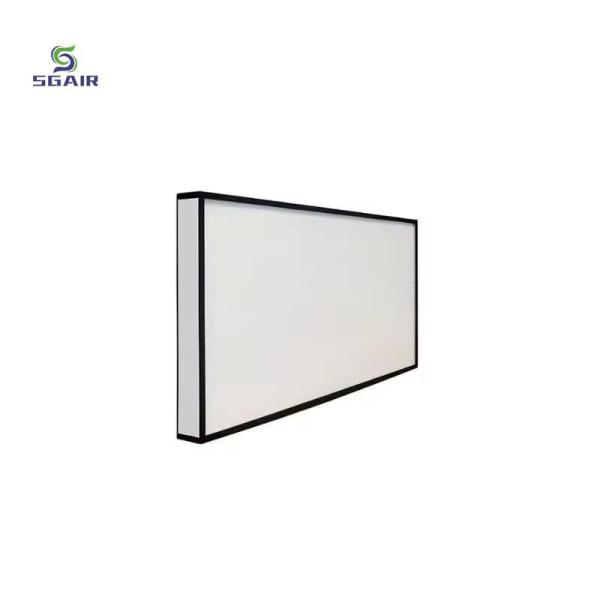

High Temperature Air Filter Stainless Steel Frame And Aluminum Foil Partition

High temperature resistant filters are widely used in many fields, and they have good heat resistance. They are widely used in some long-term high temperature production environments (such as outdoor electronic screen filters, terminals of air conditioning and ventilation systems, food processing, etc.). At the same time, high temperature resistant and high efficiency filters have very high filtering accuracy and can provide clean air for places with very high cleanliness requirements such as dirty air, electronic components, semiconductors, optoelectronics and other production workshop environments. Of course, for industries such as biopharmaceuticals, circuit boards, and food processing. In places where the production environment temperature is high and the cleanliness of the production environment is required, high temperature resistant and high efficiency filters can also have good applications.

• Media: Fiberglass
• Frame: GI; AI
• Efficiency range from F5,F6,F7,F8,F9 (EN 779)
• Average Efficiency: 45%;65%;85%;95%;
• Initial resistance: 45 Pa
• Recommended final pressure drop : 400Pa
• Humidity resistance: 100%
• Max Temperature: 120 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Media color available: White;Green;Pink;Yellow;Purple.
• Filter standard depth available 15 inch (381mm); 24 inch(600mm)
• No stitch holes emission.
• Gasket: EVA


Advantage

1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling

Application

The High Temperature Filter is a High Efficiency Particulate Air filter especially designed to remove airborne contaminants in critical areas, in which high efficiency on fine particulate matter is required and where hot air is used during the production process.
These filters are used in a broad range of industries, from the production of pharmaceutics, photos and films , to food processing.

There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose

Features:

Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled

Size(HxWxD)mm	Rated Airflow(CMH)	Initial Resistance(Pa)	Final Resistance(Pa)
320x320x220	400	120	500
484x484x220	1000
610x610x150	1000
820x600x150	1200
630x630x220	1500
968x484x220	2000
945x630x220	2200
1260x630x220	3000

After years of unremitting efforts and continuous innovation, SGAIR has developed into a professional and technologically advanced purification equipment and filter manufacturer in China, providing customers with overall solutions for purification equipment.
We have introduced advanced production equipment to produce various purification equipment and filter elements such as high-efficiency filters, high-temperature resistant filters, ultra-high-efficiency filters, medium-efficiency filters, primary filters, air showers and negative pressure weighing rooms. They are widely used in electronics, pharmaceuticals, food, medical, laboratories and other fields.
We guide customers to choose related products according to process characteristics, and provide various testing and verification services according to customer needs.
We adhere to the principle of taking science and technology as the cornerstone and the market as the criterion, adhering to the mission of "providing customers with systematic clean space solutions with excellent technology and professional services", and contributing every effort to create clean air and a green environment.
