Synthetic Fiber And Nonwoven Bag Filter/For Air Intake Filtration Of Turbo Machines And Gas Turbines​

It is mainly used in the fields of automobile manufacturing, nuclear power, military high-tech electronics and other fields with high dust collection requirements: it is made of synthetic fiber and micro fiber materials of special bag filter, which are made by using step-by-step encryption technology, and the filter material meets the European din53438-f1 flame retardant standard;

• The filter material is made of high-quality ultra-fine synthetic fiber bonded by melt blown, supplemented by 10 mm anti burst high-frequency welding structure and high-frequency welding of filter bag edge seam to increase the structural rigidity;

• Ensure that the filter layer will not fall off when the air flow suddenly starts and stops, eliminate the secondary dust production, and greatly improve the comprehensive performance of the filter bag;

• It is equipped with thin pneumatic separation bag structure and standard V-shaped structure conforming to the air flow to stabilize the air flow to the greatest extent and effectively use the filter medium to ensure the best filtering effect, the lowest resistance and the largest effective filtering area. Aluminum frame or galvanized frame, efficiency grade g3-f6.

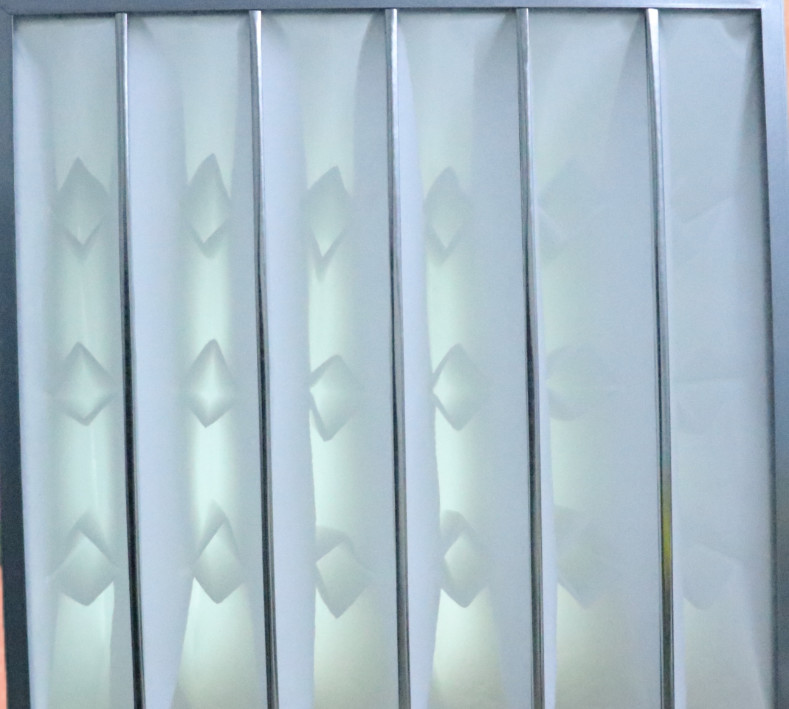

M6 High Dust Capacity Self Supporting Pocket Air Filter For Gas Turbines

-For air intake filtration of turbo machines and gas turbines.

Self-supported pocket filters are manufactured in plastic frame version and synthetic fiber.

The air intake of this pocket filter is equipped with aerodynamic stream ledges to provide the lowest possible differential pressure.

Each single pocket of the pocket filters are made of progressive structured synthetic media, which is leakage free welded and in self supporting stability.

On the one hand this conditional on manufacturing shape stability results from tubular separators, on the on the other hand this is further supported by an additional reinforcement of the media on the clean air side of each single pocket.

By this the pocket filter is able to keep its shape also at variation in pressure or at shut down of the turbine.

Features:

Filter class: G4, M5, M6 according to EN 799

Plastic frame, no corrosion.

Absolute stability at 100% relative humidity

Max operating temperature up to 80 ℃

Additional reinforcement for extreme load

Application:

Gas Turbines

Turbo machines

Compressor stations

Size and specification
