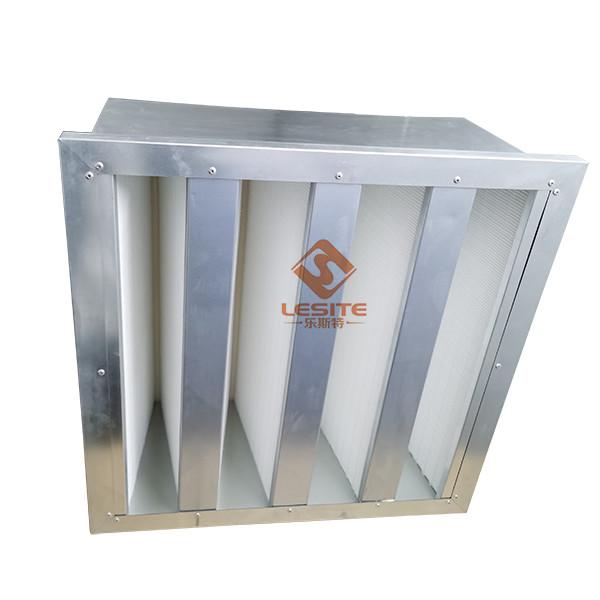

Gas Turbine Air Intake Compact Filter With Rigid Galvanized Steel Construction / Galvanized Steel​

Description:

1. Media: Polypropylene or glass fibre paper
2. Separator: Hot-melt beads
3. Frame: GI;Plastic
4. Efficiency range from MERV 11-14
5. Initial resistance: 110 Pa
6. Recommended final pressure drop : 400Pa
7. Humidity resistance: 100%
8. Max Temperature: 80 ℃
9. Sealant: Polyurethane rubber PU
10. DIN 53438 Flammability: F1
11. UL 900 Standard : Class 2
12. Max.air flow rate: 125% of rated air flow
13. Gasket: one piece half round continuous gasket
14. Available in Box or Single flange type.

Applications:

The FloMax Compact Filter unique, stable filter design distributes air evenly across the filter. It allows for large variations in air flow and pressure drop without affecting filter performance and efficiency.

Specifications:

Other sizes is available!


Competitive Advantage:

• Eliminates downstream dust and fiber shedding.
• Reduced resistance to air flow promotes significant energy savings.
• Dual direction media for front or reverse mount installation.
• No aluminum spacers to damage the filter media.
• Longer filter life with lower replacement and maintenance costs.

After years of unremitting efforts and continuous innovation, SGAIR has developed into a professional and technologically advanced purification equipment and filter manufacturer in China, providing customers with overall solutions for purification equipment.
We have introduced advanced production equipment to produce various purification equipment and filter elements such as high-efficiency filters, high-temperature resistant filters, ultra-high-efficiency filters, medium-efficiency filters, primary filters, air showers and negative pressure weighing rooms. They are widely used in electronics, pharmaceuticals, food, medical, laboratories and other fields.
We guide customers to choose related products according to process characteristics, and provide various testing and verification services according to customer needs.
We adhere to the principle of taking science and technology as the cornerstone and the market as the criterion, adhering to the mission of "providing customers with systematic clean space solutions with excellent technology and professional services", and contributing every effort to create clean air and a green environment.
